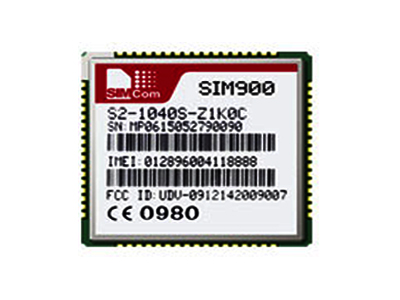

SIM900 رابط نمایشی- صنعتی استاندارد SIM900 - GSM/GPRS 850/900/1800/1900MHz برای کار با صدا-پیام (SMS)- دیتا و فاکس و کم مصرف با شکل و اندازه کوچک 24mm x 24mm x 3 mm، تقریبا مناسب برای فضای لازم در برنامه های M2M است بخصوص برای طراحی های باریک و جمع و جور مناسب است.
General features • Quad-Band 850/ 900/ 1800/ 1900 MHz • GPRS multi-slot class 10/8 • GPRS mobile station class B • Compliant to GSM phase 2/2+ – Class 4 (2 W @850/ 900 MHz) – Class 1 (1 W @ 1800/1900MHz) • SAIC (Single Antenna Interference Cancellation)support • Dimensions: 24* 24 * 3 mm • Weight: 3.4g • Control via AT commands (GSM 07.07 ,07.05 andSIMCOM enhanced AT Commands) • SIM application toolkit • Supply voltage range : 3.2 ... 4.8V • Low power consumption: 1.0mA( sleep mode&BS-PAMFRMS=9 ) • Operation temperature: -40°C to +85 °C Specifications for Fax • Group 3, class 1 Specifications for GPRS Data • GPRS class 10: max. 85.6 kbps (downlink) • PBCCH support • Coding schemes CS 1, 2, 3, 4 • PPP-stack Specifications for CSD Data • USSD • Non transparent mode Specifications for SMS via GSM/GPRS • Point to point MO and MT • SMS cell broadcast • Text and PDU mode Software features • 0710 MUX protocol • Embedded TCP/UDP protocol • FTP/HTTP Special firmware • Embedded AT • FOTA • MMS | Specifications for Voice • Tricodec - Half rate (HR) - Full rate (FR) - Enhanced Full rate (EFR) • AMR - Half rate (HR) - Full rate (FR) • Hands-free operation (Echo suppression) Interfaces • Interface to external SIM 3V/ 1.8V • Analog audio interface • RTC backup • SPI interface (option) • Serial interface • Antenna pad • I2C • GPIO • PWM • ADC Compatibility • AT cellular command interface Certifications • CE • FCC • GCF • PTCRB • IC • ICASA • ROHS • REACH • NCC • Anatel • A-TICK • ATEX Carrier Approvals • Rogers • Oranges • AT&T • Vodafone • Deuts Telecom • Telia Sonera • TIM • GMA |
